LIGHT COMMERCIAL KITCHEN HOODS SERIES
905-999-9989
COMMERCIAL RA-35
FEATURES
• Electronic 3 speed and 30 seconds delay shut-off
• LCD digital indicator displays the speed level
• Dual turbine impeller motor with 800 cFM exhaust capacity
• 22″ depth hood is perfect companion to professional cooking range
• Electronic Push button controls with LED indicator.
• Dual LEDS
• Washable baffle filter with easy removable handles.
• Wall-mount available.(Duct cover sold separately)
• Stainless steel finish

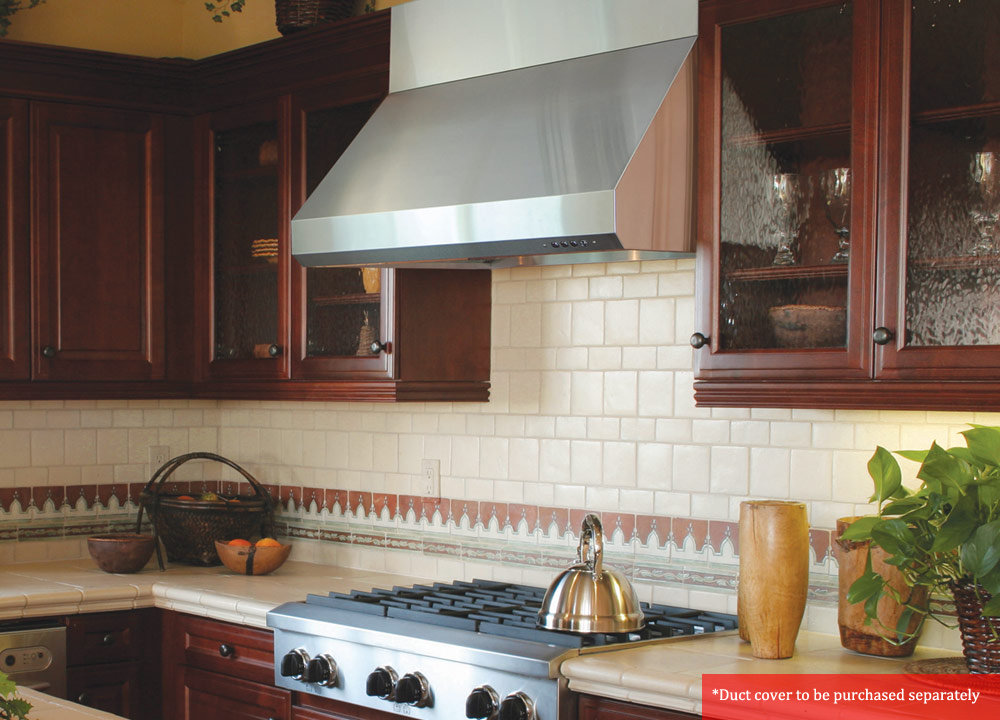

Eliminate smoke and odors from your kitchen with this Windster Hood RA-35 range hood, which features a 3-speed fan with an 800 CFM exhaust capacity for efficient performance. Push buttons and a 30-second delay shut-off function offer simple control.
CALIFORNIA ENERGY COMMISSION
The CFM levels for this model have been tested and certified by the laboratories of the California Energy Commission. More info.
SPECIFICATIONS
| MODEL | SIZE | COLOR | CFM | SONES | SPEED | LIGHT | DUCT | AMP / GAUGE | RECIRCULATING |
|---|---|---|---|---|---|---|---|---|---|
| RA-35U30SS | 30″ | Stainless Steel | 1200 | 9.0 | 3 | LED x 2 65 lm (3 w) each | 8″ vertical | 4 / 19 | No |
| RA-35U36SS | 36″ | Stainless Steel | 1200 | 9.0 | 3 | LED x 2 65 lm (3 w) each | 8″ vertical | 4 / 19 | No |
| RA-35U42SS | 42″ | Stainless Steel | 1200 | 9.0 | 3 | LED x 2 65 lm (3 w) each | 8″ vertical | 4 / 19 | No |
| RA-35U48SS | 48″ | Stainless Steel | 1200 | 9.0 | 3 | LED x 3 65 lm (3 w) each | 8″ vertical | 4 / 19 | No |
ACCESSORIES & OPTIONS
| MODEL | DESCRIPTION | SIZE | COLOR |
|---|---|---|---|
| RA-35BF | Baffle filter | – | Stainless Steel |
| RA-35CFMR | CFM Reducer | – | – |
| RA-3530DC | Duct cover | 30″ x 12″ x 12″ | Stainless Steel |
| RA-3536DC | Duct cover | 36″ x 12″ x 12″ | Stainless Steel |
| RA-3542DC | Duct cover | 42″ x 12″ x 12″ | Stainless Steel |
| RA-3548DC | Duct cover | 48″ x 12″ x 12″ | Stainless Steel |
| BS30 | Backsplash | 30″ x 30″ | Stainless Steel |
| BS36 | Backsplash | 36″ x 30″ | Stainless Steel |
| BS42 | Backsplash | 42″ x 30″ | Stainless Steel |
| 6″ DAMPER | Damper | 8″ | – |
| PC16 | Medium-duty power cord 16 gauge / 3 wire / 13 amp / 120 volt / 1,500 watt capacity | 44-1/2″ | – |
RA-35 Vdieo Test
